Chatillon DFE Series Digital Force Gauge - DFE2-050


Price:
Sale price$1,355.65

Description

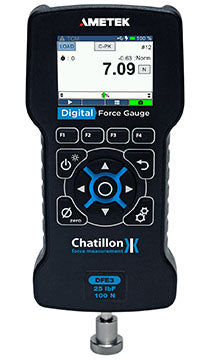

The Chatillon® DFE Series is a compact, easy-to-use force gauge designed for economy applications without compromising functionality.

The Chatillon® DFE II Series marks a new era in digital force measure­ment. This compact, easy-to-use force gauge is designed for economy applications without compromising functionality. Ideal for hand held or test stand applications.

The DFE II features an integral load cell with a measurement accuracy of better than ±0.25% FS. A large, easy-to-read, high resolution dot matrix LCD full color display supports a variety of standard gauge functions including normal and peak read­ings, high/low limits, set points, pass/fail results, statistical results, load cell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” from the operator.

All DFE II Series force gauges come with a carrying case, battery adapter/ charger, testing accessories, RS232 cable and NIST Certificate of Cali­bration with data. The DFE II Series has analog, USB and RS232 serial communication.

  • Capacities from 2 lbf (10 N) to 500 lbf (2500 N)
  • Selectable Units of Measurement - ozf, gf, lbf, kgf and N
  • Normal and Peak Operating Modes
  • Advanced Functions -
    • Load Limits
    • Pass/Fail
    • Embedded SPC
    • Overload History
  • Integral Load CellSimple User Interface
    • Better than 0.25% FS Accuracy
    • Mechanical Overload Protection to 150% FS
  • Selectable Display Languages - English, Spanish, French, German, Portuguese and Chinese
  • NIST Calibration with Data
  • Compact, easy-to-use force gauge for economy applications
  • 1 Year Warranty

Literature

Chatillon DFE Series Digital Force Gauge - DFE2-050
Capacity 50lbf
Readability 0.01lbf
Display LCD full color display
Included carrying case, battery adapter/charger, testing accessories, RS232 cable and NIST Certificate of Calibration with data
