Chatillon STS Series Interchangeable Torque Sensor - STS-0003

Save $99.15

Price:
Sale price$1,883.85 Regular price$1,983.00

Description

The Chatillon® STS Series Torque Sensors are used exclusively with Chatillon DFS-R-ND Series digital gauges.

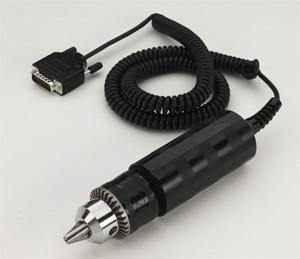

The CHATILLON® STS Series torque sensors are full-bridge strain gauge sensors complete with 15-pin plug. These sensors are used exclusively with the Chatillon DFS-R-ND Series digital indicator.

The sensor’s torque values and sensitivity factors are stored in memory within the sensor plug. When connected to a DFS-R-ND indicator, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured torque measurement instrument. The STS Series torque sensor meets ASTM E4 and BS EN ISO 7500 part 1 for a +0.3% accuracy sensor.

The sensors are connected to the DFS-R-ND with a retractable cord that extends fully to nearly 9 ft. (3 m).

  • Plug & Play Operation
    • DFS-R-ND Gauge
  • Accuracy up to 0.1% FS
  • NIST Calibration with Data
  • 1 Year Warranty
