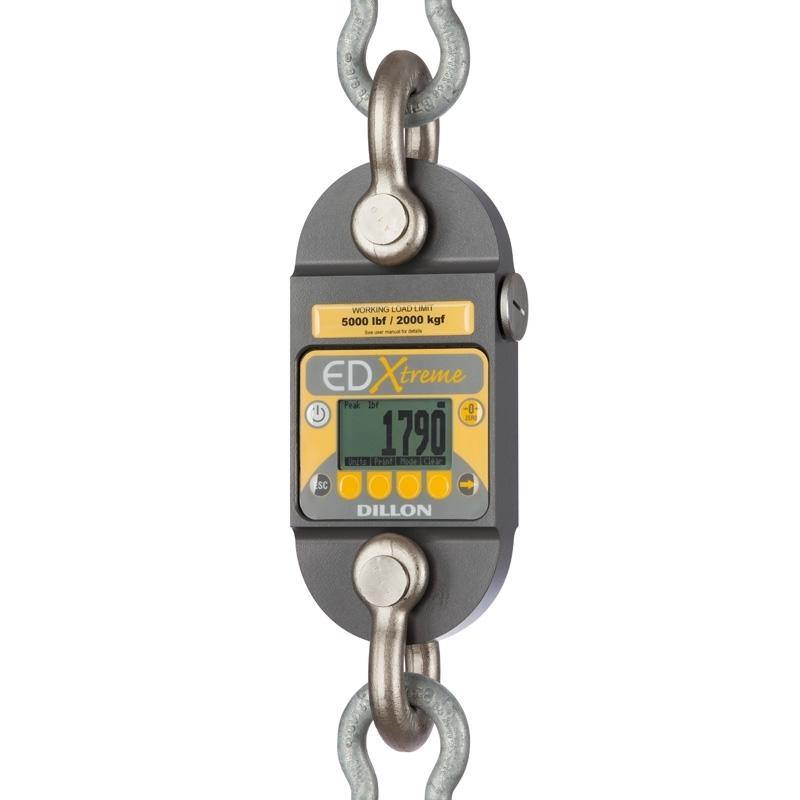

Dillon EDxtreme Dynamometer - EDx-150T AWT05-506310

Sale price$32,295.00


The EDxtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety.

Replaces old manufacturer part number 36169-0118

Dillon EDxtreme Dynamometer - with two shackles & radio-ready** & backlight

**Requires radio-equipped Communicator to benefit from this option part number 36170-0016

We set out to create a system that had never been achieved - a modular dynamometer so flexible it could serve as a simple hanging scale or could form the hub of a complex weighing system. With multiple dynamometers monitoring many critical lifting points in the same airspace - all from a single wireless remote, we are pleased to introduce the all-new EDXtreme with optional Communicator.

  • Enclosure: Designed to NEMA4X/IP55. Suitable for continuous outdoor use.
  • RS-232 / RS-485 Communication: Print or extract data easily. Continuous output can drive a scoreboard. Coni gurable poll character.
  • Battery Life: 320 hours typical use with two C-cell alkaline batteries. 40 hours typical with Radio Link system.
  • 2 Year Warranty



Dillon EDxtreme Dynamometer - EDx-150T 36169-0118
Capacity 330,000lbf
Readability 200lbf
Shipping Weight 750lb
Includes All include certificate of calibration, manual and batteries. Plastic carry case included for EDx-1T to EDx-50T. Higher capacities include rugged plywood storage crate. Instruments with shackles include centering spacers (EDx-20T & up) and shackle storage crate (EDx-20T to EDx-75T). Display backlight.
