Description
***Please give us a call before checking out to be sure the correct fittings for your gauge are ordered

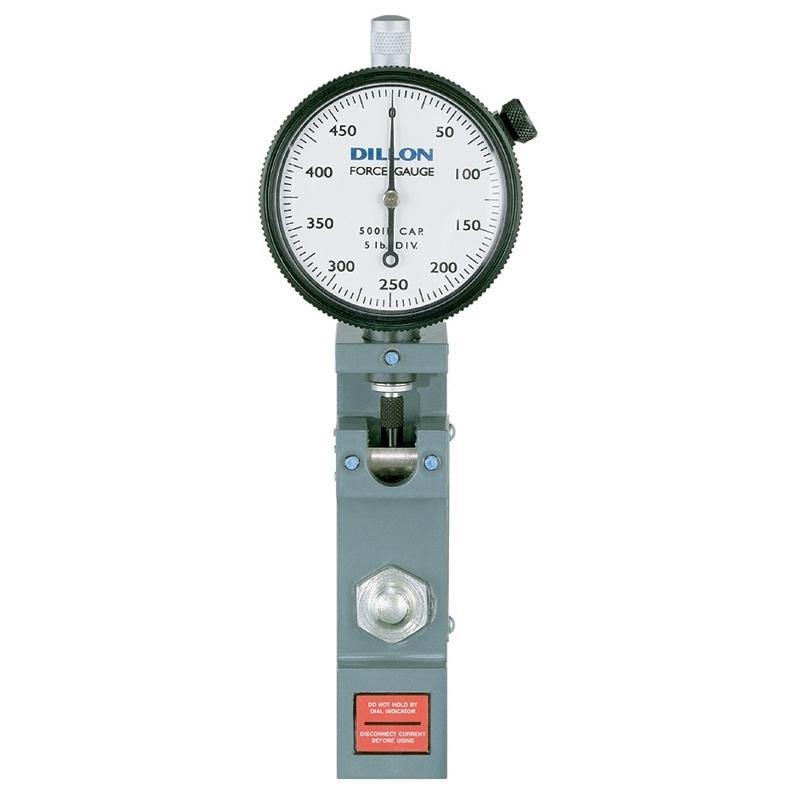

Proven accuracy and ruggedness sets our mechanical force gauge apart in the force measurement industry. The "D" shaped deflection beam is the heart of the Force Gauge system. Highly engineered materials with close machining tolerances and proper heat treatment provide optimum strength and spring characteristics.
Ideal for stand alone force applications or as the load defining component of a much larger system.
2 Year Warranty
STANDARD GAUGE INCLUDES:
FLAT-BOTTOM VERSIONS, FORCE GAUGE ASSEMBL, PLASTIC CARRY CASE & CERTIFICATE OF CALIBRATION.
COMPRESSION FITTING SOLD SEPARATELY
Compression Load Fittings 25 lb to 250 lb (10 to 100 kg)
| Part Number | Load Fitting |
|---|---|
| 30160-0011 | FLAT |
| 30156-0017 | CUP |
| 30159-0014 | DOME |
| 30158-0015 | NYLON INSERT |
Compression Load Fitting 500 lb and 1,000 lb (500 kg)
| Part Number | Load Fitting |
|---|---|
| 30483-0011 | DOME |
| 30378-0019 | CUP |
| 30484-0010 | FLAT |
Compression Load Fitting 2,000 lb to 10,000 lb (1,000 kg and 5,000 kg)
| Part Number | Load Fitting |
|---|---|
| 30434-0011 | DOME |
| 30125-0015 | CUP |
| 30475-0011 | FLAT |
Force Gauge Options
A. Maximum pointer. Not available with shockless dial indicator. Add “M” to the end of the part number. Add to basic force gauge price.
B. Shockless dial indicator. Not available with maximum pointer. Add “S” to the end of the part number. Add to the basic force gauge price.
