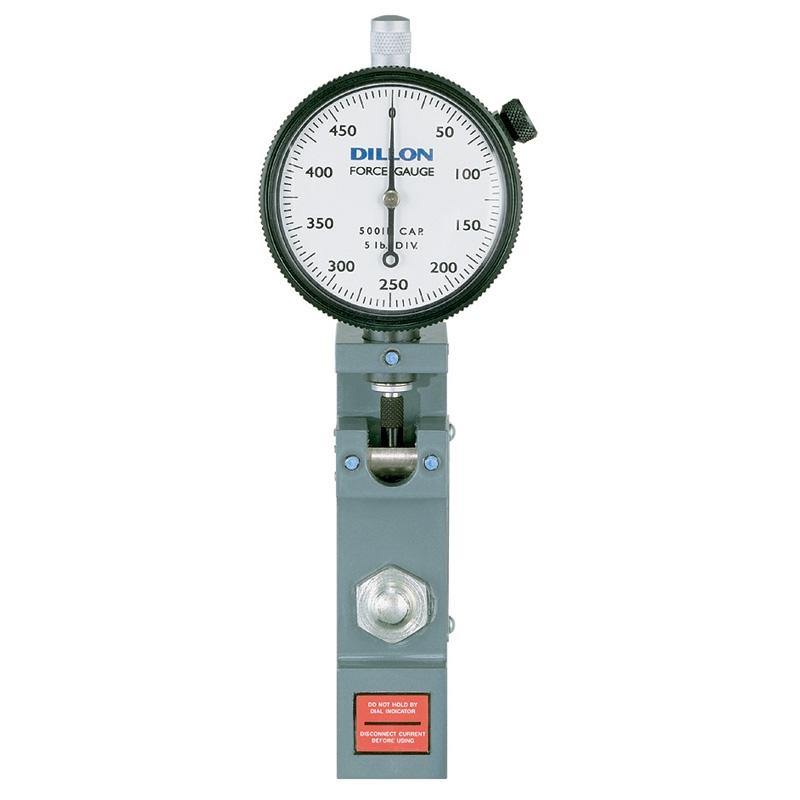

Dillon Model U Force Gauge - 30482-0020 500lb x 5lb


Price:
Sale price$1,975.00

Description

Proven accuracy and ruggedness sets our mechanical force gauge apart in the force measurement industry. Capacity: 500lb x 5lb

***Please give us a call before checking out to be sure the correct fittings for your gauge are ordered

Proven accuracy and ruggedness sets our mechanical force gauge apart in the force measurement industry. The "D" shaped deflection beam is the heart of the Force Gauge system. Highly engineered materials with close machining tolerances and proper heat treatment provide optimum strength and spring characteristics.
Ideal for stand alone force applications or as the load defining component of a much larger system.

2 Year Warranty

STANDARD GAUGE INCLUDES:

FLAT-BOTTOM VERSIONS, FORCE GAUGE ASSEMBL, PLASTIC CARRY CASE & CERTIFICATE OF CALIBRATION.

COMPRESSION FITTING SOLD SEPARATELY

Compression Load Fittings 25 lb to 250 lb (10 to 100 kg)

Part Number Load Fitting
30160-0011 FLAT
30156-0017 CUP
30159-0014 DOME
30158-0015 NYLON INSERT

Compression Load Fitting 500 lb and 1,000 lb (500 kg)

Part Number Load Fitting
30483-0011 DOME
30378-0019 CUP
30484-0010 FLAT

Compression Load Fitting 2,000 lb to 10,000 lb (1,000 kg and 5,000 kg)

Part Number Load Fitting
30434-0011 DOME
30125-0015 CUP
30475-0011 FLAT

Force Gauge Options


A. Maximum pointer. Not available with shockless dial indicator. Add “M” to the end of the part number. Add to basic force gauge price.
B. Shockless dial indicator. Not available with maximum pointer. Add “S” to the end of the part number. Add to the basic force gauge price.
