Description

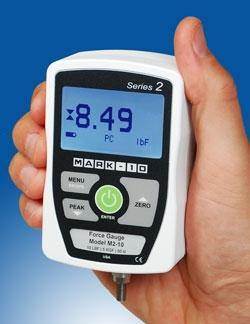

Series 2 digital force gauges are designed for basic tension and compression force testing applications
Series 2 digital force gauges are designed for basic tension and compression force testing applications. Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.
The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.
- Calculates peak tension and compression values
- 3 selectable units of measurement
- Ultra-compact, ergonomic housing
- Configurable default measurement unit and mode
- 500 Hz sampling rate
- Large, backlit graphic display with auto-dimming
- Powered by 9V battery or available AC adapter
- Reversible housing for alternate load cell orientation
| Mark-10 Series 2 Economical Digital Force Gauge - M2-20 | |
| Capacity | 20lbF / 100N |
| Accuracy | 0.5% |
| Display | LCD - current, peak tension, or peak compression reading |
| Power |
Powered by 9V battery or optional AC adapter |
| Units of measure | lbF, kgF, N |
| Warranty | 3 years |
